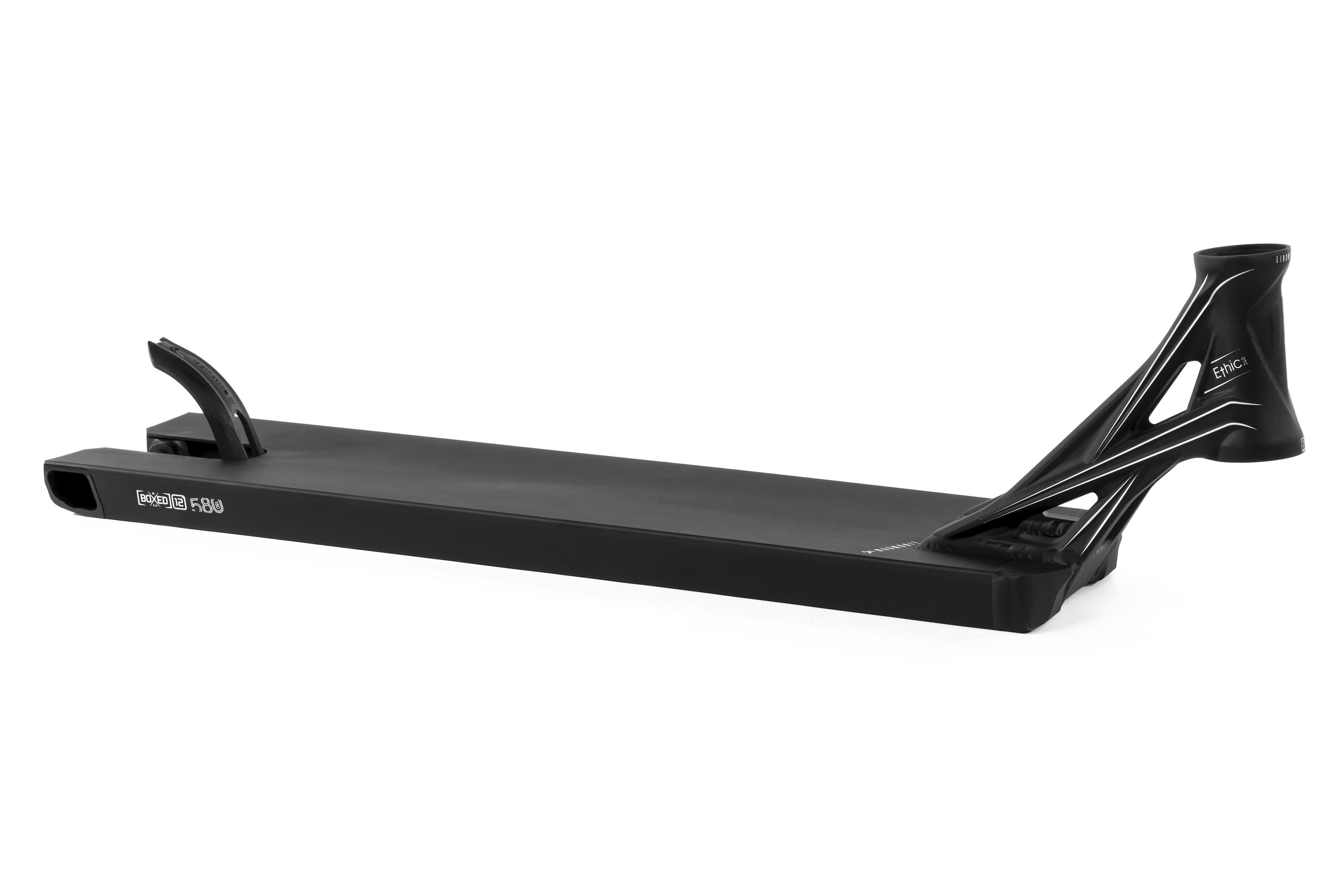

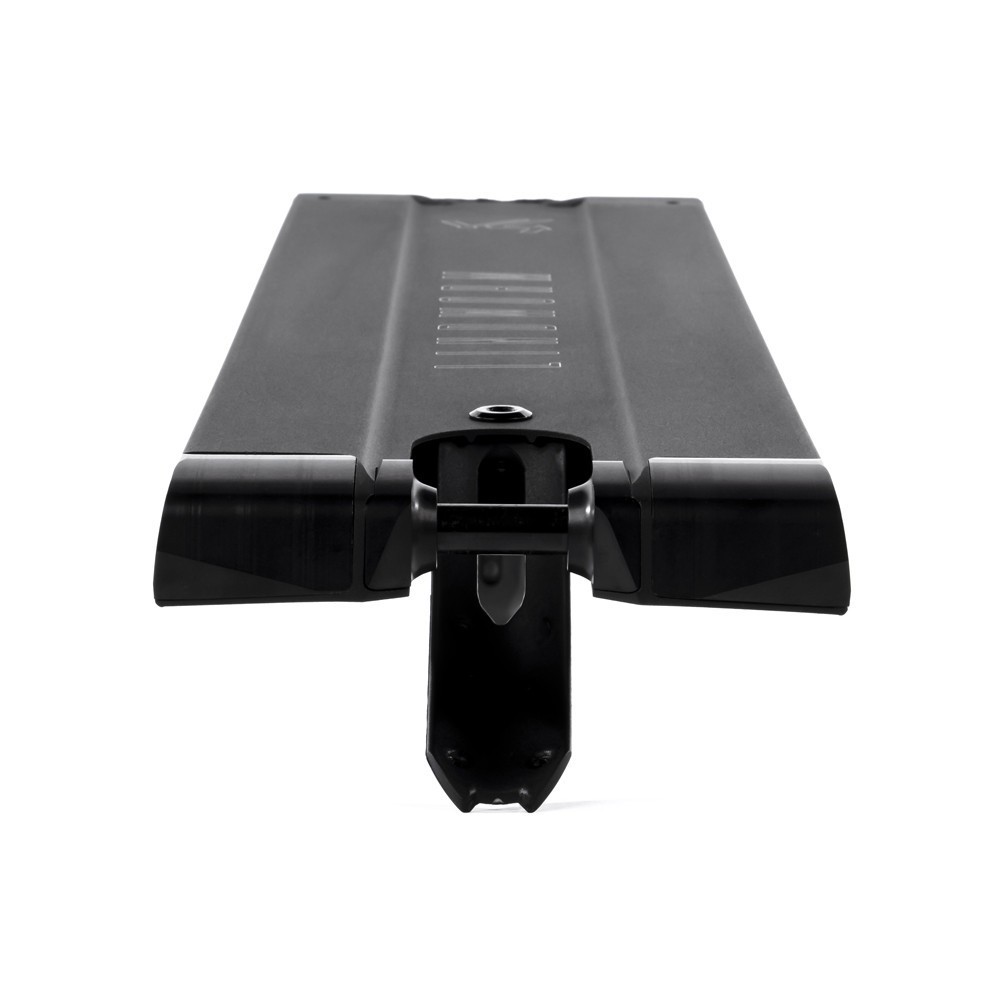

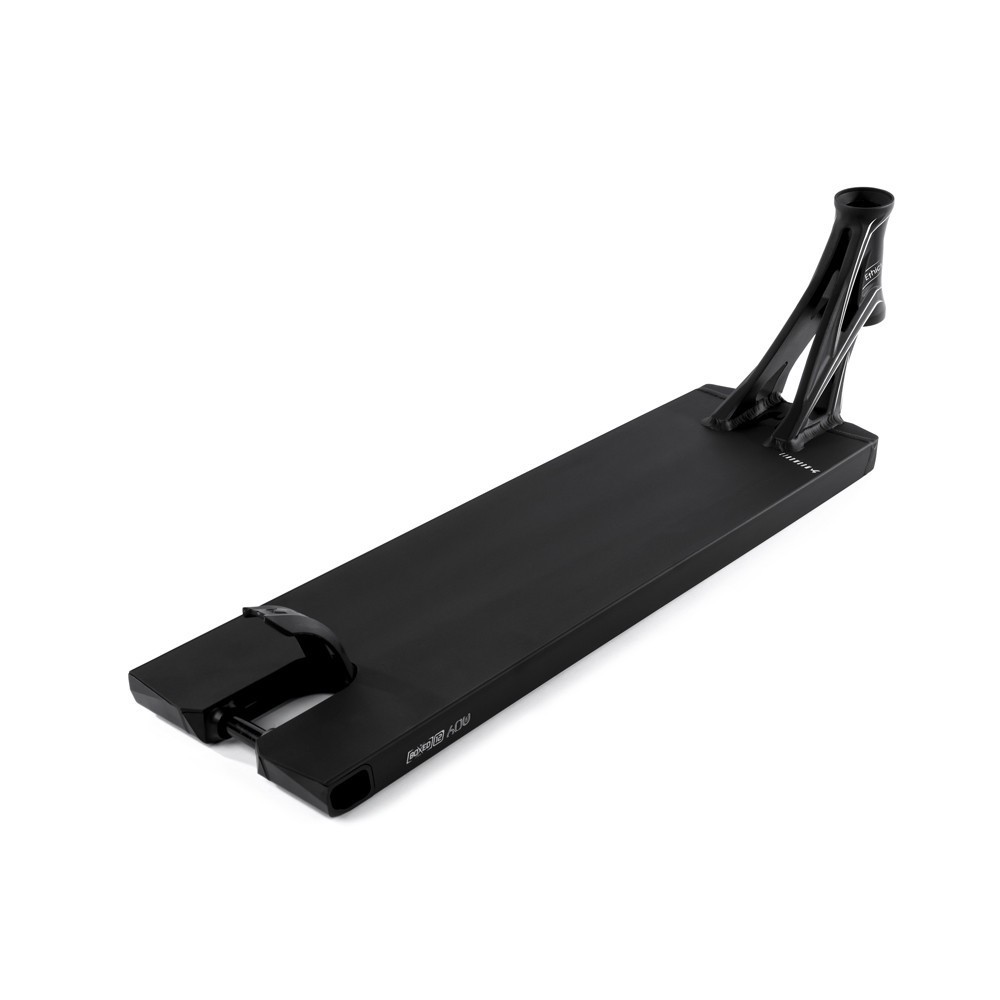

Ethic DTC Ethic DTC Lindworm V4 Deck 6.3''
Wider, lighter and even more stable
The Ethic Lindworm V4 Deck 6.3" is the latest version of the proven Lindworm deck with numerous improvements. This deck features square dropouts designed similarly to the Vulcain deck to increase the strength and durability of the rear dropouts. This provides improved stability and makes the deck ideal for intense street sessions. In addition, the blunt plate on the front has been redesigned to make crook grinds and nose blunts easier.
Smooth grinding thanks to dual grind rails & versatility in wheel size
The deck retains the proven dual grind rail system on the bottom, which creates less friction and thus enables a particularly smooth grind. This system significantly outperforms flat bottoms by minimizing friction and thus giving you more precise control. The Ethic Lindworm V4 Deck 6.3" is compatible with both 12 STD and 24mm wide 8 STD wheels, and all the necessary Hardware components for conversion are included. Whether you prefer smaller or larger wheels, this deck adapts to your preferences.
Ethic DTC Lindworm V4 Deck 6.3'' Specifications
- Material: 6061 T6 Aluminum
- Weight: 1928 g (21.3") & 2109 g (22.8")
- Length: 560 mm (22") & 600 mm (23.5")
- Width: 160 mm (6.3")
- Headtube: 83.5°; forged
- Brake: Flex Fender
- Headset Compatibility: Integrated Headsets
- Wheel Compatibility: Up to 125 x 30 mm wheels
- Axle Compatibility: 8 mm and 12 STD
- Griptape included: No
- Deck End Type: Boxed
- Concave
- Includes axles and spacers (8 STD axle, 12 STD axle, conversion spacers (12 STD to M8), and 12 STD spacers)
| Axle diameter: | 8 mm, 12 mm |
|---|---|
| Headtube-angle: | 83.5° |
| Länge: | 22.0" (55,9 cm), 23.5" |
| Wheel - width: | 24 mm, 26 mm, 28 mm, 30 mm |
| Wheel diameter: | 100 mm, 110 mm, 115 mm, 120 mm, 125 mm |
| Width: | 6.3" (16 cm) |
ETHIC WARRANTY
Ethic DTC Warranty
Ethic DTC products are designed for a freestyle use, and its durability will depend on the rider’s use. Each rider has to choose a product which is adapted to his need, height, level and style : light and accurate for confirmed riders, heavier and more stable for beginners.
It is important to point out that generally high-end parts have a development focused on reactivity, weight and feeling. They are therefore theoretically less resistant than entry-level parts, and are to be avoided for beginners.
All Ethic DTC products are warranted against manufacturing defects which can result in material resistance before use: functional geometry, welds.
Are not taken care of any aesthetic defect: paint, waterdecal, anodizing.
A List of parts for which there is no guarantee after the first use, indeed are parts of limited life time, and it is natural to replace them with the time :
- Clamps
- Headsets
- Pegs
- Bearings
- Griptape
- Grips
- Brakes
AList of parts for which there is a guarantee following the first use:
Wheels:
The wheels are guaranteed 1 month after the date of purchase, are concerned:
- Crack of the core
- Core deformation
- Removal of the rubber which makes it impossible to use
Are not concerned:
- Superficial deterioration of the PU, which does not impair the rollability of the wheel.
Forks:
The forks are guaranteed 3 months after the date of purchase, are concerned:
- Deformation of the tube
- Crack on the lower part
- Error on the thread of the compression cap
Are not concerned:
- Breakage of the compression cap (indeed they are available as spare parts on shops)Axles
Bars :
The handlebars are guaranteed 3 months after the date of purchase, are concerned:
- Crack at the slot
- Handlebar break
- Sufficient deformation of the handlebar which makes it impossible to use
Are not concerned:
- Crack on the upper part of the handlebar, some cracks are superficial and stabilize with time, so the handlebars must be either twisted or broken for the guarantee to be effective
Deck :
The decks are guaranteed 1 month on the banana effect of the deck, and 3 months on the breakage or cracks depending on the area concerned.
The banana effect concerns the extrusion of the deck (part where one places his feet), this area is stable in production and therefore rarely reached by a potential manufacturing defect. If the deck is deformed, it is logical that the deck is undersized for the rider in question. It is strongly advised to choose a different model later, or the same problem will happen again.
Area covered by the warranty on cracks (cracks that will cause a breakage of the deck in the short term thereafter):
- Any cracks on the front part of the deck (forged or welded part), in the case of an unforged deck (erawan / artefact ...) the guarantee is only effective on the weld that link the neck to the headtube.
Complete scooter :
On a complete scooter, each piece is subject to the warranty rules specific to the type of parts concerned.
